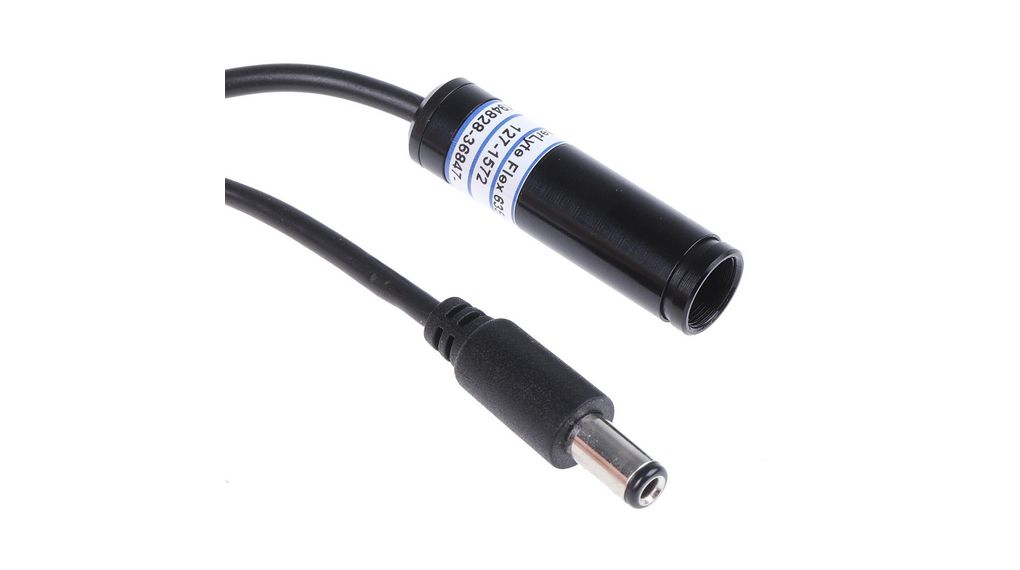

3117-12-000 Laser Module, 635nm 1mW, Continuous Wave Dot pattern3117-12-000
3117-12-000 - 3117-12-000 Laser Module, 635nm 1mW, Continuous Wave Dot pattern
305-03-344
3117-12-000
Manufacturer:Global Laser
New to us
Image is for illustrative purposes only. Please refer to product description.
3117-12-000 - 3117-12-000 Laser Module, 635nm 1mW, Continuous Wave Dot pattern
305-03-344
3117-12-000
Manufacturer:Global Laser
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Automotive Standard: No Control Type: ON|OFF Diameter: 11 mm Emission Pattern: Line|Dot|Cross Laser Class: 2 Laser Colour: Red Laser Type: Diode Laser Wavelength: 635 nm Length: 44 mm Maximum Operating Temperature: 55 °C Maximum Supply Voltage: 10 V Minimum Operating Temperature: -10 °C Minimum Supply Voltage: 3.5 V Optical Output Power: 10 mW Product Type: Laser Module Series: LaserLyte-Flex Standards/Approvals: IEC 60825-1:2014|ANSI Z87 (for safety glasses) Supply Current: 100 mA
Previous Article Number
695984
Additional information
Country of origin United Kingdom (GB)
Manufacturer Global Laser
Gross weight (incl. package) 98 Gram
Dimensions (incl. package) 143 x 105 x 51 MM
Customs number 8541410000
UNSPSC (v5.03) 32111503
