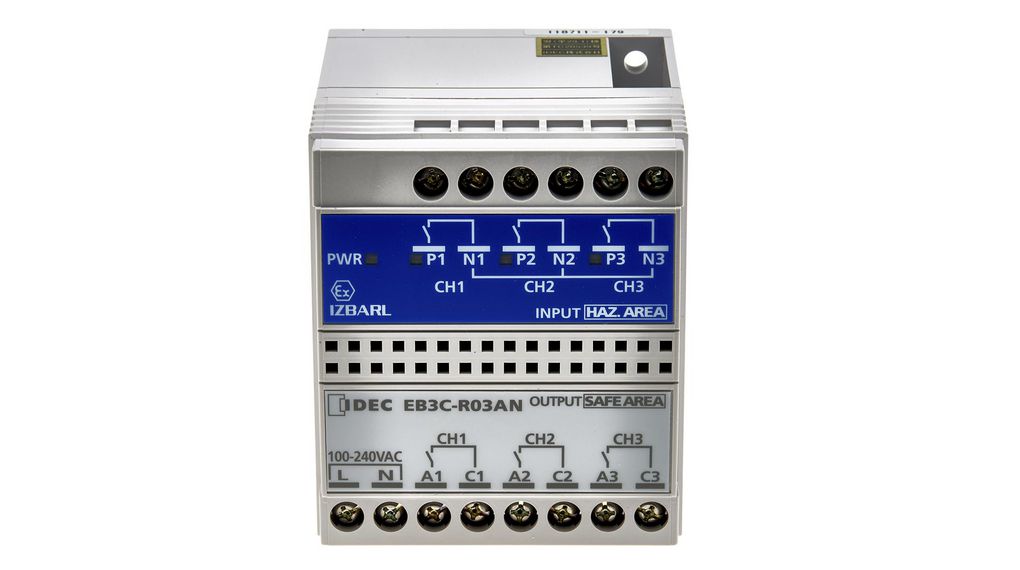

Idec 3 Channel Zener Barrier, Intrinsic Safety Barrier, Relay Output, ATEXEB3C-R03AN
EB3C-R03AN - Idec 3 Channel Zener Barrier, Intrinsic Safety Barrier, Relay Output, ATEX
305-03-380
EB3C-R03AN
Manufacturer:IDEC
New to us
Image is for illustrative purposes only. Please refer to product description.
EB3C-R03AN - Idec 3 Channel Zener Barrier, Intrinsic Safety Barrier, Relay Output, ATEX
305-03-380
EB3C-R03AN
Manufacturer:IDEC
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Barrier Type: Relay Barrier Hazardous Area Certification: ATEX IP Rating: IP20 Maximum Operating Temperature: 60 °C Maximum Safety Current: 14.2 mA Maximum Safety Voltage: 250 V ac Minimum Operating Temperature: -20 °C Mount Type: DIN Rail Number of Channels: 3 Product Type: Zener Barrier Safety Current Resistance: 300 Ohm Series: EB3C Standards/Approvals: CE|FM|IEC|UL Supply Voltage: 100/240 V ac Terminal Type: Screw
Previous Article Number
696012
Additional information
Country of origin Japan (JP)
Manufacturer IDEC
Gross weight (incl. package) 255 Gram
Dimensions (incl. package) 110 x 82 x 80 MM
Customs number 8504500000
UNSPSC (v5.03) 41113637
